Description

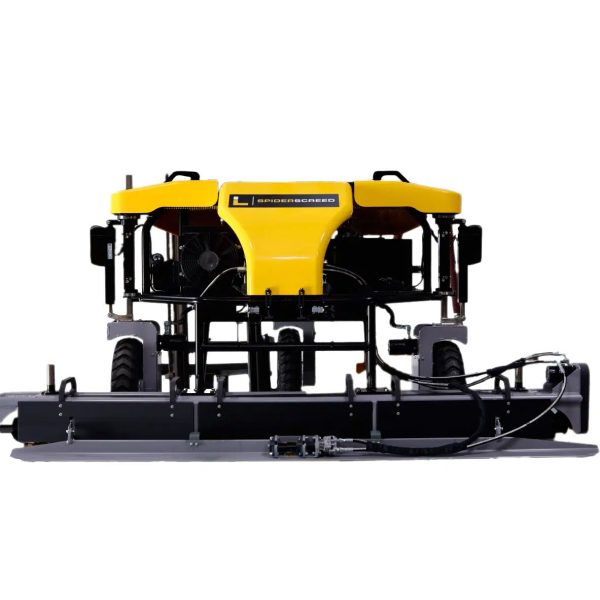

SPIDERSCREED Specifications
Width: 94 in | 239 cm
Length: 69 in | 175 cm
Height: 57 in | 149 cm
Weight: 1280 lbs. | 581 kg
Displacement:
• Front two tires: 12 lbs./sq. in.
• Rear tire: 10 lbs./sq. in.
Screed Head:
• 10 ft. | 3.1 m
• 8 ft. | 2.4 m (optional)
• The SpiderScreed features an auger in the screed head
Tires/Wheels: 3 wheel/tire combination. Tires – Carlisle 4 ply Trac Chief – 5.7″ x 12″
Electronics:
• Eaton keypad for operator controls
• Parker MD4 7” touch-screen display for systems/diagnostic status
Leveling Systems:
• Standard – Automatic laser leveling (2 Topcon LS-B110 receiver eyes included)
• Optional – Topcon Sonic Tracker (2 Topcon ST-2 Sonic Trackers)
• Optional – Topcon Robotic Total Station Control
Engine: Honda GX630 – 20.8 HP | 15.5 kW
Drive System:
• Independent hydraulic front wheel drive
• Wheels linked together in unison achieving zero turn, parallel, and lateral steering and drive motions
